self supporting optical fibre cable outdoor GYXTC8S with G652D optic fiber cable tower laying 4 core aerial cable

Short Description:

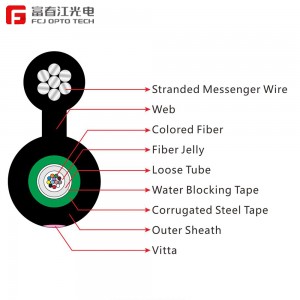

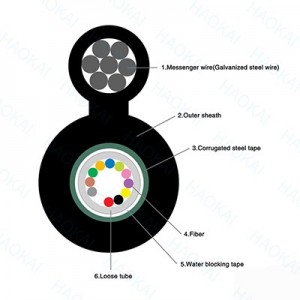

The fibers, 250μm,are positioned in a loose tube made of a high modulus plastic, the tubes are filled with a water-resistant filling compound. The two sides PSP are longitudinally applied over the outer loose tube. Steel wires and loose tubes filled with water proof compound to ensure compact and longitudinally water blocking ,this part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene(PE) sheath to be figure 8 structure.

Send email to us

Product Detail

Product Tags

Characteristics

· High tensile strength of stranded wires meet the requirement of self-supporting and reduce the installation cost
· Good mechanical and temperature performance
· High strength loose tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· PSP enhancing moisture-proof
· Small diameter, light weight and friendly installation
· Long delivery length and low price.

Standards

GYXTC8S cable complies with Standard YD/T 1155-2001 as well as IEC 60794-1.

Optical Characteristics

		G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20℃)	@850nm			≤3.0 dB/km	≤3.0 dB/km
	@1300nm			≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.36 dB/km	≤0.40 dB/km
	@1550nm	≤0.22 dB/km	≤0.23dB/km
Bandwidth (Class A)	@850nm			≥500 MHz·km	≥200 MHz·km
Bandwidth (Class A)	@1300nm			≥1000 MHz·km	≥600 MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength		≤1260nm	≤1480nm

Technical Parameters

Cable Type	Fiber Count	Cable Diameter mm	Cable Weight kg/km	Supporting Wire Spec	Connection Diameter	Tensile Strength Long/Short Term N	Crush Resistance Long/Short Term N/100mm	Bending Radius Static /Dynamic mm
GYXTC8S	2~12	7.65×14.5	118	Φ1.0mm*7 Stranded wires	Height×Width 3.0×2.5 mm	1000/2500	300/1000	80/160
GYXTC8S	14~24	8.2×15.1	129	Φ1.0mm*7 Stranded wires	Height×Width 3.0×2.5 mm	600/1500	300/1000	90/180
