Premium Quality Fiber Optical PLC Splitter - Lgx Cassette Module for Efficient Networking

Premium Quality Fiber Optical PLC Splitter - Lgx Cassette Module for Efficient Networking
  • Premium Quality Fiber Optical PLC Splitter - Lgx Cassette Module for Efficient Networking

Short Description:

Cassette Splitter (Insert type PLC Fiber Splitter) 1x(2,4…128) or 2x(2,4…128) (Insert type: SC/UPC, SC/APC… can be choosen).Planar Lightwave Circuit (PLC) Splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.



Product Detail

Product Tags

Immerse in the world of high-speed networking with Fcjoptic's revolutionary Fiber Optical PLC Splitter. Designed meticulously with ABS Sc APC, our Lgx Cassette module splitter ensures exponential growth in your networking functionalities. This product is rooted in the sturdy foundations of Telcordia GR-1209-CORE-2001 and Telcordia GR-1221-CORE-1999 standards, showcasing our unwavering commitment to quality. Coupled with the powerful fundamentals of YD/T 2000, our Fiber Optical PLC Splitter is engineered to deliver seamless data transmission for all your FTTH applications. Our PLC Splitter is encapsulated in a robust ABS cassette module, making it a perfect choice for high-density network configurations. The APC end-face of the fibers ensures optimal signal quality, reducing back reflection for efficient data transmission. Expertly crafted to suit your demands, our Fiber Optical PLC Splitter effortlessly splits the input power uniformly across all output ports, providing a balanced distribution of data signals. This makes it an ideal choice for service providers needing to deliver high-speed data, video, and voice services in FTTH deployments. The product stands as a testament to Fcjoptic's excellence in innovating networking solutions that combine style, functionality, and exceptional performance. Owners of this Fiber Optical PLC Splitter can rest assured of its durability and longevity, making it a worth-while investment for both small scale and large scale networking requirements. Elevate your FTTH applications to the next level with Fcjoptic's world-class Fiber Optical PLC Splitter. Experience an unrivaled blend of quality, performance, and reliability that echoes Fcjoptic's steadfast commitment to customer satisfaction.

Features

Telcordia GR-1209-CORE-2001
Telcordia GR-1221-CORE-1999
YD/T 2000.1-2009
RoHS

singliemg

Product Details

1X N（N≥2）

PARAMETERS

1×2

1×4

1×8

1×16

1×32

1×64

1×128

Wavelength (nm)

1260～1650

Fiber type

G657A 1or custom-defined

Pigtail length(m)

1.0(±0.1) or custom-defined

Insertion loss (dB)

≤3.8

≤7.2

≤10.3

≤13.6

≤16.9

≤20.4

≤23.5

Loss uniformity(dB)max

≤0.8

≤1.0

≤1.2

≤1.5

≤1.8

≤2.0

≤2.0

Return loss (dB)minimum

55

55

55

55

55

55

55

PDL (dB)max

≤0.2

≤0.2

≤0.3

≤0.3

≤0.4

≤0.4

≤0.4

Directivityminimum

≥55

Wavelength related loss(dB)max

≤0.6

≤0.6

≤0.6

≤0.8

≤1.0

≤1.0

≤1.2

Working temp. ( ℃)

-40～85

Store temp. ( ℃)

-40～85

bare fiber

40×4×4

50×7×4

60×12×4

120*26*10

ABS package size(LxWxH)mm

100×80×10

120×80×18

140×115×18

150*130*25

Mini package size(Lx W x H)mm

55×7×4

60×12×4

80×20×6

100×40×6

120*50*12

2X N（N≥2）

PARAMETERS

2×2

2×4

2×8

2×16

2×32

2×64

2×128

Wavelength (nm)

1260～1650

Fiber type

G657A 2 or custom-defined

Pigtail length(m)

1.0(±0.1) or custom-defined

Insertion loss (dB)

≤4.2

≤7.5

≤10.6

≤13.9

≤17.2

≤20.8

≤23.8

Loss uniformity(dB)max

≤0.8

≤1.0

≤1.2

≤1.5

≤1.8

≤2.0

≤2.0

Return loss (dB)minimum

55

55

55

55

55

55

55

PDL (dB)max

≤0.2

≤0.2

≤0.3

≤0.3

≤0.4

≤0.4

≤0.4

Directivityminimum

≥55

Wavelength related loss(dB)max

≤0.6

≤0.6

≤0.6

≤0.8

≤1.0

≤1.0

≤1.2

Working temp. ( ℃)

-40～85

Store temp. ( ℃)

-40～85

bare fiber

50×4×4

50×7×4

60×12×4

120*26*10

ABS package size(LxWxH)mm

100×80×10

120×80×18

140×115×18

150*130*25

Mini package size(LxWxH)mm

60×7×4

60×12×4

80×20×6

100×40×6

120*50*12

Remark: these datas not include connector loss,Each connector will add 0.25dB loss, each adapter will add extra 0.2dB loss

Application

● FTTH (Fiber to the home)
● Access/PON distribution
● CATV NETWORK
● High reliability/Monitoring/other Network systems
1x(2,4…128) or 2x(2,4…128) PLC Splitter in FTTH Solution

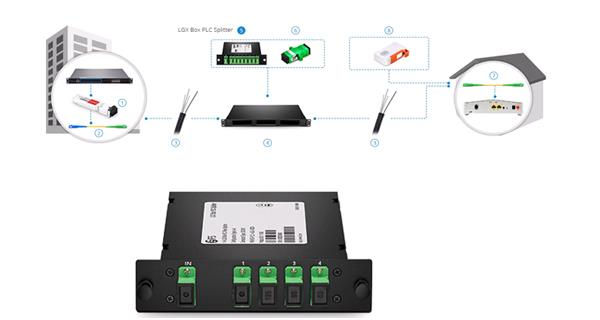

The standard LGX box PLC splitter /Insert type PLC splitter provides a plug-and-play method for integration in the network, which eliminates any risks during installation. It eliminates the need for splicing machines on the field and there is no need for skilled personnel for deployment. The following figure shows 1×4 LGX PLC Splitter applied in the 1U rack chassis in GPON network.

Application

  • Previous:
  • Next:


    • Join us in redefining the future of networking with Fcjoptic's high-performance Fiber Optical PLC Splitter. Secure accelerated data transmission and superior connectivity, all in a compact, sleek design that is sure to enhance your FTTH deployments. In the ever-evolving world of networking, trust Fcjoptic to bring you cutting-edge solutions with our Fiber Optical PLC Splitter. Give your network the boost it deserves and traverse the fast-paced digital landscape with confidence and ease.
