Short Description:

Description

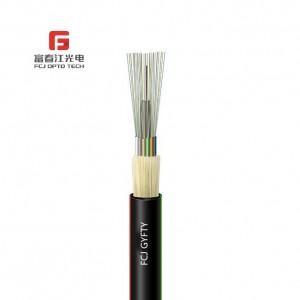

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. After the cable core is filled with the filling compound to protect it from water ingress, the cable is completed with a PE sheath.

Characteristics

Good mechanical and temperature performance

High strength looes tube that is hydrolysis resistant

Special tube filling compound ensure a critical protection of fiber

Crush resistance and flexibility

The following measures are taken to ensure the cable watertight:

Single Fiber Reinforced Plastic as the central strength member

Loose tube filling compound

100% cable core filling

Standards

GYFTY cable complies with Standard YD/T 901-2001as well as IEC 60794-1.



Optical Characteristics

    G.652 G.655 50/125μm 62.5/125μm
Attenuation

(+20℃)

 @850nm     ≤3.0 dB/km ≤3.0 dB/km
@1300nm     ≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.36 dB/km ≤0.40 dB/km
@1550nm ≤0.22 dB/km ≤0.23dB/km
Bandwidth (Class A) @850nm     ≥500 MHz·km ≥200 MHz·km
@1300nm     ≥1000 MHz·km ≥600 MHz·km
Numerical Aperture     0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength ≤1260nm ≤1480nm



Technical Parameters

Cable Type Fiber Count Tubes Fillers Cable Diameter

mm

 Cable Weight kg/km Tensile Strength

Long/Short Term N

 Crush Resistance

Long/Short Term

N/100mm

 Bending Radius

Static/Dynamic

mm
GYFTY-2~6 2~6 1 5 10.6 88 400/1000 300/1000 10D/20D
GYFTY-8~12 8~12 2 4 10.6 88 400/1000 300/1000 10D/20D
GYFTY-14~18 14~18 3 3 10.6 88 400/1000 300/1000 10D/20D
GYFTY -20~24 20~24 4 2 10.6 88 400/1000 300/1000 10D/20D
GYFTY-26~30 26~30 5 1 10.6 88 400/1000 300/1000 10D/20D
GYFTY-32~36 32~36 6 0 10.6 88 400/1000 300/1000 10D/20D
GYFTY-2~6 2~6 1 6 11.0 97 600/1500 300/1000 10D/20D
GYFTY-8~12 8~12 2 5 11.0 97 600/1500 300/1000 10D/20D
GYFTY-14~18 14~18 3 4 11.0 97 600/1500 300/1000 10D/20D
GYFTY-20~24 20~24 4 3 11.0 97 600/1500 300/1000 10D/20D
GYFTY-26~30 26~30 5 2 11.0 97 600/1500 300/1000 10D/20D
GYFTY-32~36 32~36 6 1 11.0 97 600/1500 300/1000 10D/20D
GYFTY-38~42 38~42 7 0 11.0 97 600/1500 300/1000 10D/20D
GYFTY-44~48 44~48 4 2 12.0 113 600/1500 300/1000 10D/20D
GYFTY-50~60 50~60 5 1 12.0 113 600/1500 300/1000 10D/20D
GYFTY-62~72 62~72 6 0 12.0 113 600/1500 300/1000 10D/20D
GYFTY-2~6 2~6 1 7 12.0 120 1000/3000 300/1000 10D/20D
GYFTY-8~12 8~12 2 6 12.0 120 1000/3000 300/1000 10D/20D
GYFTY-14~18 14~18 3 5 12.0 120 1000/3000 300/1000 10D/20D
GYFTY-20~24 20~24 4 4 12.0 120 1000/3000 300/1000 10D/20D
GYFTY-26~30 26~30 5 3 12.0 120 1000/3000 300/1000 10D/20D
GYFTY-32~36 32~36 6 2 12.0 120 1000/3000 300/1000 10D/20D
GYFTY-38~42 38~42 7 1 12.0 120 1000/3000 300/1000 10D/20D
GYFTY-44~48 44~48 8 0 12.0 120 1000/3000 300/1000 10D/20D
GYFTY-50~60 50~60 5 2 13.0 137 1000/3000 300/1000 10D/20D
GYFTY-62~72 62~72 6 1 13.0 137 1000/3000 300/1000 10D/20D
GYFTY-74~84 74~84 7 0 13.0 137 1000/3000 300/1000 10D/20D
GYFTY-86~96 86~96 8 0 13.9 154 1000/3000 300/1000 10D/20D
GYFTY-98~108 98~108 9 1 15.3 185 1000/3000 300/1000 10D/20D
GYFTY-110~120 110~120 10 0 15.3 185 1000/3000 300/1000 10D/20D

Storage/Operating Temperature : -40℃ to + 70℃






  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month

    Product Detail

    Product Tags

    FCJOptic is proud to introduce our top-of-the-line GYFTY 12, 24, 48, 96-Core Outdoor Non-Metallic Flame Retardant Fibre Optic Cables. These exceptional communication cables, also known as GYTS Cables, are designed with superior quality and technologically advanced features that aim to provide unrivalled performance in fibre optic communication. One of the noteworthy features of our GYTS Cable is the flame-retardant quality. This safety measure ensures that the cables are resistant to dangerous fire incidents, making them suitable for outdoor installations. Our varying core options, ranging from 12 to 96, allow for a multitude of data transmission needs, accommodating both small and larger scale operations. This GYTS Cable is built with non-metallic components, ensuring its resistance to corrosion and enhancing its longevity, even when exposed to harsh outdoor conditions. Every GYTS Cable that we supply complies with the highest industry standards, ensuring reliable and efficient communication.






  • Previous:
  • Next:


    • Previously, our customers favored the GYFTA53 Armoured 4 6 8 12 16 24 48 72 96 144 Core Fiber Optic Cable for its durability and cost-effectiveness. Yet, as we continue to evolve and innovate, we've developed this new line of GYFTY cables to address an even wider range of customer needs. The GYFTY 12 24 48 96-Core Outdoor Non-Metallic Flame Retardant Fibre Optic Cables are the next generation of our commitment to superior product development and customer satisfaction. FCJOptic continues to revolutionize fibre optic communication technology by offering this superior range of GYTS Cables. Trust in FCJOptic for your fibre optic cabling needs - we aim to not only meet your expectations but to exceed them. Our commitment to quality, innovation, and customer satisfaction is evident in every GYTS Cable we offer. Upgrade to FCJOptic's GYFTY cables and experience the difference in communication solutions today.
