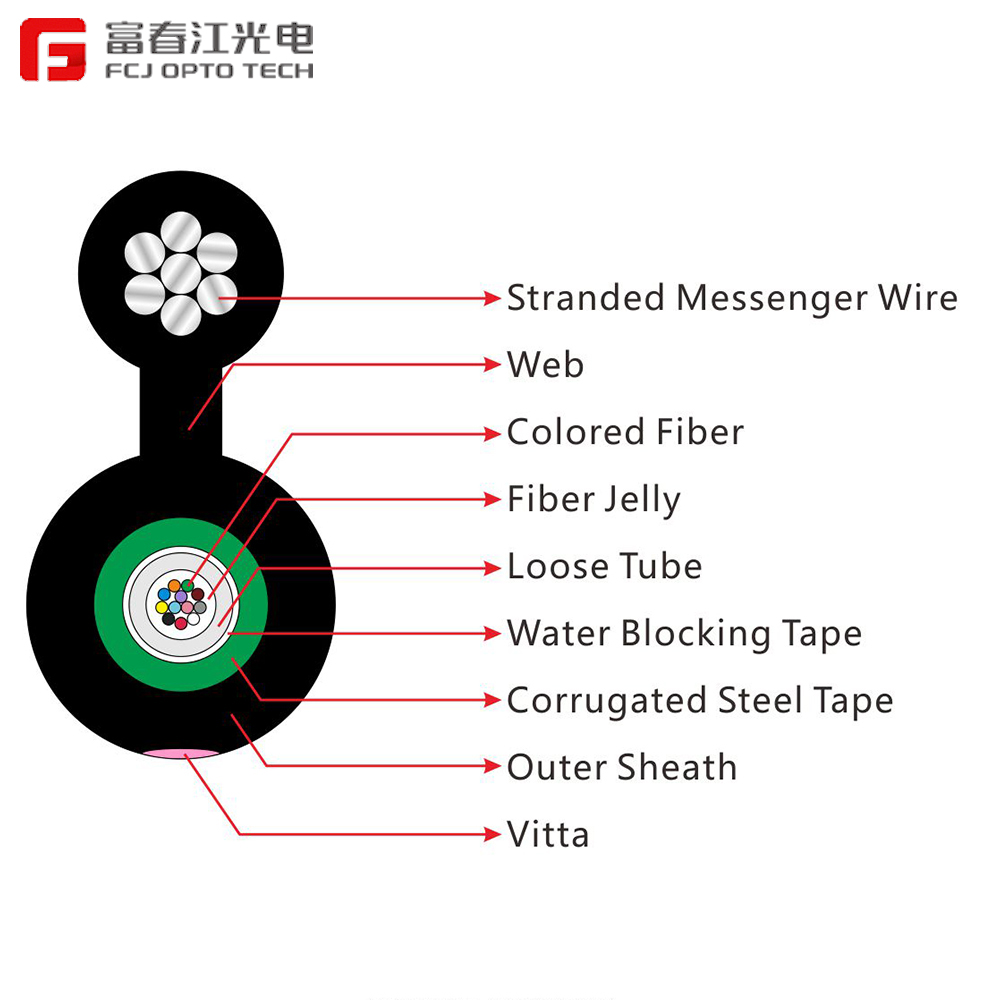

ODM Famous Tight Buffer Cable Factory –GYXTC8S Aerial Overhead Self Supported 12 Or 24 Core Singlemode Outdoor Armored Fiber Optical Cable – FCJ OPTO Detail:

Characteristics

· High tensile strength of stranded wires meet the requirement of self-supporting and reduce the installation cost
· Good mechanical and temperature performance
· High strength loose tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· PSP enhancing moisture-proof
· Small diameter, light weight and friendly installation
· Long delivery length and low price.

Standards
GYXTC8S cable complies with Standard YD/T 1155-2001 as well as IEC 60794-1.

Optical Characteristics

		G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20℃)	@850nm			≤3.0 dB/km	≤3.0 dB/km
	@1300nm			≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.36 dB/km	≤0.40 dB/km
	@1550nm	≤0.22 dB/km	≤0.23dB/km
Bandwidth (Class A)	@850nm			≥500 MHz·km	≥200 MHz·km
Bandwidth (Class A)	@1300nm			≥1000 MHz·km	≥600 MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength		≤1260nm	≤1480nm

Technical Parameters

Cable Type	Fiber Count	Cable Diameter mm	Cable Weight kg/km	Supporting Wire Spec	Connection Diameter	Tensile Strength Long/Short Term N	Crush Resistance Long/Short Term N/100mm	Bending Radius Static /Dynamic mm
GYXTC8S	2~12	7.65×14.5	118	Φ1.0mm*7 Stranded wires	Height×Width 3.0×2.5 mm	1000/2500	300/1000	80/160
GYXTC8S	14~24	8.2×15.1	129	Φ1.0mm*7 Stranded wires	Height×Width 3.0×2.5 mm	600/1500	300/1000	90/180

Storage/Operating Temperature : -40℃ to + 60℃
