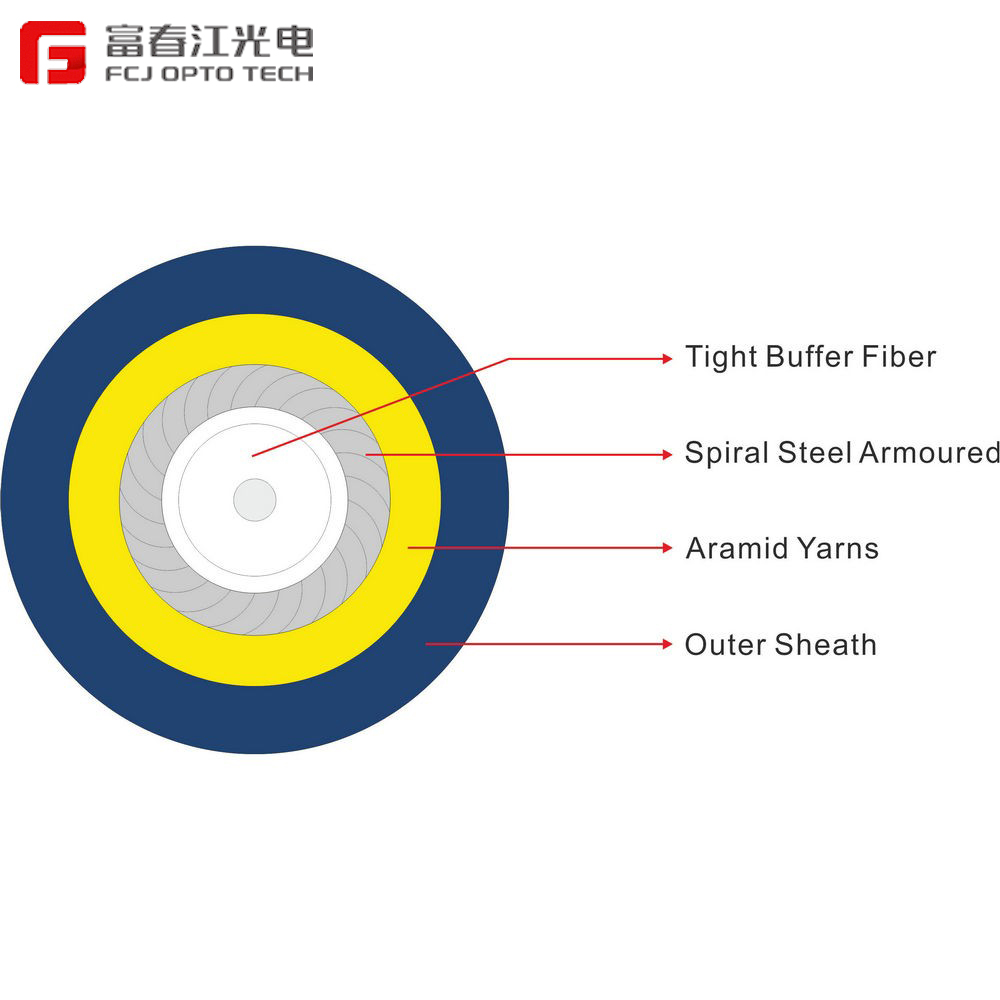

ODM Famous FTTH Sc Sc Patch Cord Supplier –GJSFJV SX Steel Wire Indoor Armored Optical Fiber Cable For Indoor Optic Fiber Cable – FCJ OPTO Detail:

Application

·Stainless steel wires enhance the crush resistance of the cable and anti-rodent
·High strength aramid yarn,high performance outer sheath
·Small bending radius,light weight,flexibility,and friendly installation.
·Good mechanical and environmental performance.
·Flame retardant outer sheath provide good safety.

Characteristics

·All kinds of connector
·Fiber optic pigtails, patch cords.
·Fiber optic equipment and instrument
·Indoor cabling,building cabling,LAN, etc
·Long distance, outdoor/indoor cabling, trunking,etc
·Backbone network to the equipment in the building
·The cabling from desk or under the carpet to ceiling
·Small bending radius,large capacity,multi user indoor installation,unit cabling,independent using,convenient connection with each end devices.
·Recommend high density wiring,small installation space and curvature

Standards
GJSFJV cable comply with Standard YD/T 2488-2013, ICEA-596, GR-409, IEC794, etc; and meet the requirements of UL approval for OFNR, OFNP.

Optical Characteristics

		G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20℃)	@850nm			≤3.0dB/km	≤3.0dB/km
	@1300nm			≤1.0dB/km	≤1.0dB/km
	@1310nm	≤0.36dB/km	≤0.36dB/km
	@1550nm	≤0.22dB/km	≤0.23dB/km
Bandwidth （Class A）	@850			≥500MHZ·km	≥200MHZ·km
Bandwidth （Class A）	@1300			≥1000MHZ·km	≥600MHZ·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength		≤1260nm	≤1480nm

Technical Parameters

Cable Type	Fiber Count	Tight Diameter mm	Cable Diameter mm	Cable Weight Kg/km	Tensile Strength Long/Short Term N	Crush Resistance Long/Short Term N/100m	Bending Radius Static/Dynamic mm
GJSFJV	1	0.6	2.0	11	300/750	200/1000	20D/10D
GJSFJV	1	0.6	2.2	12	300/750	200/1000	20D/10D
GJSFJV	1	0.6	2.4	13	300/750	200/1000	20D/10D
GJSFJV	1	0.9	3.0	15	300/750	200/1000	20D/10D

Storage/Operating Temperature : -20℃ to + 60℃
