Maximize Optic Performance with Fcjoptic's Single Mode PLC Splitter 1X8

Short Description:

1x(2,4…128) or 2x(2,4…128) ( ABS Box type PLC Fiber Splitter : No connector, SC/UPC, SC/APC…FC can be choosen).Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations. Pigtailed ABS splitter is most commonly used in the PON networks. It provides the complete protection for inner optical components and cable, as well as designed for the convenient and reliable installation, but its volume is relatively large. It’s mainly used for various connection and distribution products(outdoor fiber distribution box) or network cabinets. (ABS type: No connector, SC/UPC, SC/APC…FC can be choosen).

Send email to us

Product Detail

Product Tags

Introducing Fcjoptic's state-of-the-art ABS Box Type PLC Fiber Splitter Single Mode Fiber Optical 1X8 Coupler PLC Splitter. This top-notch device is a game-changer for single-mode fiber optic connections, bringing forth unparalleled performance, efficiency, and flexibility. Our PLC Splitter 1X8 sets the industry standard, complying with Telcordia GR-1209-CORE-2001, Telcordia GR-1221-CORE-1999, and YD/T 2000. This ensures a fully reliable and high-quality device that aims to exceed user expectations every time. Every piece is meticulously engineered and put through stringent quality checks before reaching the customer, ensuring optimal performance and durability. The PLC Splitter 1X8 uses Planar Lightwave Circuit technology for its operations, offering superior signal splitting capabilities. The splitter allows data to be sent and received simultaneously, multiplying the effectiveness of the optical network, ensuring efficient data transmission, and enabling real-time communications. The single-mode fiber optic support ensures that the signal quality is maintained over long distances, making our product ideal for large-scale network deployments.

Features

Telcordia GR-1209-CORE-2001
Telcordia GR-1221-CORE-1999
YD/T 2000.1-2009
RoHS

singliemg

Product Details

1X N (N≥2)

PARAMETERS		1×2	1×4	1×8	1×16	1×32	1×64	1×128
Wavelength (nm)		1260～1650
Fiber type		G657A 1or custom-defined
Pigtail length(m)		1.0(±0.1) or custom-defined
Insertion loss (dB)		≤3.8	≤7.2	≤10.3	≤13.6	≤16.9	≤20.4	≤23.5
Loss uniformity(dB)	max	≤0.8	≤1.0	≤1.2	≤1.5	≤1.8	≤2.0	≤2.0
Return loss (dB)	minimum	55	55	55	55	55	55	55
PDL (dB)	max	≤0.2	≤0.2	≤0.3	≤0.3	≤0.4	≤0.4	≤0.4
Directivity	minimum	≥55
Wavelength related loss(dB)	max	≤0.6	≤0.6	≤0.6	≤0.8	≤1.0	≤1.0	≤1.2
Working temp. ( ℃)	-40～85
Store temp. ( ℃)	-40～85
bare fiber		40×4×4			50×7×4		60×12×4	1202610
ABS package size(LxWxH)mm		100×80×10			120×80×18		140×115×18	15013025
Mini package size(Lx W x H)mm		55×7×4			60×12×4	80×20×6	100×40×6	1205012

2X N（N≥2）

PARAMETERS		2×2	2×4	2×8	2×16	2×32	2×64	2×128
Wavelength (nm)		1260～1650
Fiber type		G657A 2 or custom-defined
Pigtail length(m)		1.0(±0.1) or custom-defined
Insertion loss (dB)		≤4.2	≤7.5	≤10.6	≤13.9	≤17.2	≤20.8	≤23.8
Loss uniformity(dB)	max	≤0.8	≤1.0	≤1.2	≤1.5	≤1.8	≤2.0	≤2.0
Return loss (dB)	minimum	55	55	55	55	55	55	55
PDL (dB)	max	≤0.2	≤0.2	≤0.3	≤0.3	≤0.4	≤0.4	≤0.4
Directivity	minimum	≥55
Wavelength related loss(dB)	max	≤0.6	≤0.6	≤0.6	≤0.8	≤1.0	≤1.0	≤1.2
Working temp. ( ℃)	-40～85
Store temp. ( ℃)	-40～85
bare fiber		50×4×4			50×7×4		60×12×4	1202610
ABS package size(LxWxH)mm		100×80×10			120×80×18		140×115×18	15013025
Mini package size(LxWxH)mm		60×7×4			60×12×4	80×20×6	100×40×6	1205012

Remark: these datas not include connector loss,Each connector will add 0.25dB loss, each adapter will add extra 0.2dB loss

Application

● FTTH (Fiber to the home)
● Access/PON distribution
● CATV NETWORK
● High reliability/Monitoring/other Network systems

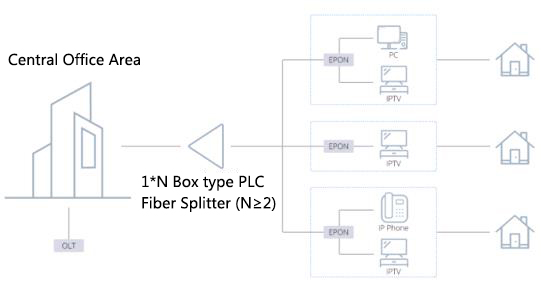

Best Alternative for FTTx Solution:Being installed in an outside plant enclosure, PON splitter is used to distribute or combine optical signals, which gives carriers the ability to split optical signals to multiple homes or businesses.

applition

Previous: Fast Delivery Jet Micro Cable SingleMode Fiber Optic Cable For Duct&Aerial Installation

Next: Bare Splitter Without Connector High Quality Big Brand Quality Assurance

Our ABS Box Type design adds an extra layer of protection, safeguarding the PLC Splitter from any potential damage, and ensuring a long product lifespan. It's easy to integrate into existing systems and is highly adaptable, offering varied inputs and outputs to suit a wide range of applications. Fcjoptic's PLC Splitter 1X8 forms the backbone of an effective fiber-optic network. With its high-quality design and performance guaranteed, it delivers an enhanced user experience. Invest in Fcjoptic's ABS Box Type PLC Fiber Splitter Single Mode Fiber Optical 1X8 Coupler PLC Splitter and take your network performance to the next level.
