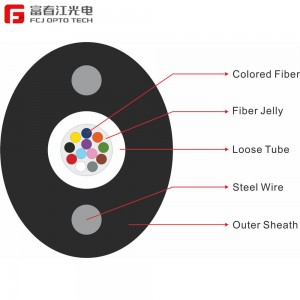

GYXTPY FTTH Drop Cable Fiber-Optic FTTH Service Internet Cable
Characteristics
·Good mechanical and temperature performance
·High strength loose tube that is hydrolysis resistant
·Special tube filling compound ensure a critical protection of fiber
·Crush resistance and flexibility
·Inexpensive and can reduce operating costs
·Two parallel steel wires ensure tensile strength
·Small diameter, light weight and friendly installation
·Long delivery length
Optical Characteristics
| G.652 | G.655 | 50/125μm | 62.5/125μm | ||
| Attenuation(+20℃) | @850nm | ≤3.0 dB/km | ≤3.0 dB/km | ||
| @1300nm | ≤1.0 dB/km | ≤1.0 dB/km | |||
| @1310nm | ≤0.00 dB/km | ≤0.00dB/km | |||
| @1550nm | ≤0.00 dB/km | ≤0.00dB/km | |||
| Bandwidth(Class A) | @850nm | ≥500 MHz·km | ≥200 MHz·km | ||
| @1300nm | ≥500 MHz·km | ≥500 MHz·km | |||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off Wavelength | ≤1260nm | ≤1480nm | |||
Technical Parameters
Fiber count | Cable Diameter mm | Cable Weight kg/km | Tensile Strength Long/Short Term N | Crush Resistance Long/Short Term N/100mm | Bending Radius Static /Dynamic mm | |
GYXTPY | 1~12 | 5.0*6.0 | 29 | 250/500 | 300/1000 | 12.5D/25D |
Storage/Operating Temperature : : -40℃ – + 70℃
