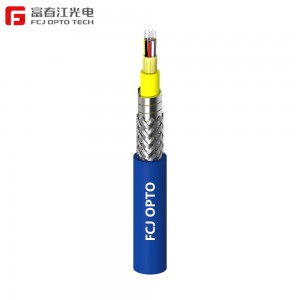

GJSFJV Distribution Armored Indoor Drop Cable For Italy Cabling Systems
Characteristics
·Multi fiber armored optical fiber cable has a layer of stainless steel wires enhance the crush resistance of the cable and anti-rodent
·High strength aramid yarn,high performance outer sheath
·Small radius, light weight,flexibility,and friendly installation.
·Good mechanical and environmental performance.
·Flame retardant outer sheath provide good safety.
Application
·All kinds of connector
·Fiber optic pigtails, patch cords.
·Fiber optic equipment ,fiber optic patch panel,fiber to the desk,etc
·Fiber optic equipment and instrument
·Indoor cabling,building cabling,LAN, etc
·Long distance, outdoor/indoor cabling, trunking,etc
·Backbone network to the equipment in the building
· Small installation space cabling
Standards
·GJSFJV cable comply with Standard YD/T 2488-2013, ICEA-596, GR-409, IEC794, etc; and meet the requirements of UL approval for OFNR, OFNP.
Optical Characteristics
G.652 | G.655 | 50/125μm | 62.5/125μm | ||
Attenuation | @850nm | ≤3.0dB/km | ≤3.0dB/km | ||
@1300nm | ≤1.0dB/km | ≤1.0dB/km | |||
@1310nm | ≤0.36dB/km | ≤0.36dB/km | |||
@1550nm | ≤0.22dB/km | ≤0.23dB/km | |||
Bandwidth | @850 | ≥500MHZ·km | ≥500MHZ·km | ||
@1300 | ≥1000MHZ·km | ≥600MHZ·km | |||
Numerical | 0.200±0.015NA | 0.275±0.015NA | |||
Cable Cut-off Wavelength | ≤1260nm | ≤1480nm |
Technical Parameters
Cable Type | Fiber Count | Tight Diameter mm | Cable Diameter | Cable Weight | Tensile Strength Long/Short Term N | Crush Resistance Long/Short Term N/100m | Bending Radius Static/Dynamic |
GJFJV+SV | 2 | 0.6 | 5.0 | 42 | 300/750 | 200/1000 | 20D/10D |
GJFJV+SV | 4 | 0.6 | 6.0 | 65 | 300/750 | 200/1000 | 20D/10D |
GJFJV+SV | 6 | 0.6 | 6.0 | 66 | 300/750 | 200/1000 | 20D/10D |
GJFJV+SV | 8 | 0.6 | 6.0 | 68 | 300/750 | 200/1000 | 20D/10D |
GJFJV+SV | 12 | 0.6 | 6.0 | 70 | 300/750 | 200/1000 | 20D/10D |
Storage/Operating Temperature : -20℃ to + 60℃
