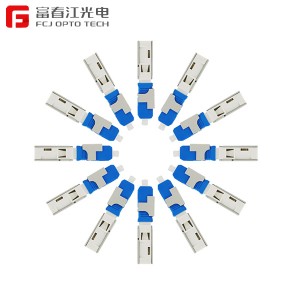

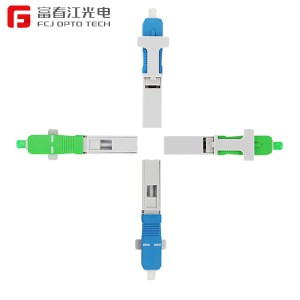

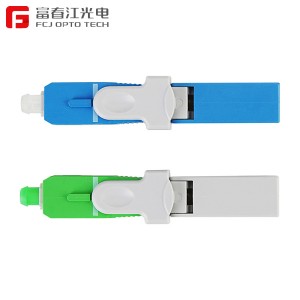

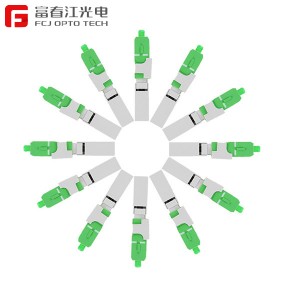

Fiber SC Standard certification Quick Connector field assemble SC/APC Fast Connector

Short Description:

Fiber Optic Adapter ,the fast connector (on-site assembly connector or on-site terminated fiber optic connector, fast assembling fiber optic connector) is a revolutionary field installable fiber optic connector that does not require epoxy or polishing. The unique design of the unique mechanical connector body includes factory-installed fiber optic heads and pre-polished ceramic ferrules. The use of such on-site assembled optical connectors can increase the flexibility of optical wiring design and reduce the time required for optical fiber termination. The quick connector series is already a popular solution for fiber optic cable wiring inside local area network and CCTV applications, as well as FTTH buildings and floors. It has good oxidation resistance and long-term stability.

Different types of products can be customized according to customer requirements.



Product Detail

Product Tags

standards

1.ITU-T and IEC and China standards:
2.YDT 2341.1-2011 Field Assembled Optical Fiber Active Connector
Part 1: Mechanical Type
3.China Telecom fast Connector Standard [2010] No. 953
4.01C GR-326-CORE (Issue 3, 1999) General requirements for
single-mode optical connectors and jumpers
5.YD/T 1636-2007 Fiber to the Home (FTTH) Architecture and General
Requirements Fiber Optic Cable Connector Part 4: Sectional Specification
Optical Fiber Optical Cable Mechanical Connector

Features

●Low insertion loss and high return loss;
●Reliable optical performance;
●Convenient on-site installation;
●Quick installation and easy operation
●Low cost.

Technical Parameters

ItemParameters
Suitable for fiber optic cable range3.0    x 2.0 mm and 1.6*2.0mm flat cable
Size51*9*7.55mm
Coating diameter250μm
ModeSingle    mode
operation hoursApproximately    15 seconds (excluding fiber presets)
Insertion loss≤    0.3dB(1310nm & 1550nm)
Return loss≤    -50dB for UPC, ≤ 55dB for APC
Exclude fiber presets>98%
Repeat assembly times>5    times
Bare fiber fastening force>5    N
Tensile strength>30    N
Temperature-40    ~ +85 C
Online tensile test t (20 N)IL    ≤ 0.3dB
Mechanical durability (500 times)IL    ≤ 0.3dB
Drop testIL    ≤ 0.3dB
