Factory Fiber Optic PLC Splitter: Efficient Signal Distribution
Product Main Parameters
| Configuration | Wavelength (nm) | Insertion Loss (dB) | Return Loss (dB) |
|---|---|---|---|
| 1x2 | 1260~1650 | ≤3.8 | >55 |
| 1x4 | 1260~1650 | ≤7.2 | >55 |
| 1x8 | 1260~1650 | ≤10.3 | >55 |
Common Product Specifications
| Parameter | 1x32 | 1x64 |
|---|---|---|
| Wavelength (nm) | 1260~1650 | 1260~1650 |
| Fiber Type | G657A | G657A |
| Working Temp (℃) | -40~85 | -40~85 |
Product Manufacturing Process
The manufacturing of Fiber Optic PLC Splitters at our factory involves the use of advanced silica glass substrates and photolithographic techniques. This process, similar to semiconductor fabrication, ensures precise and uniform splitter design, critical for reliable performance. PLC splitters consist of input fiber, a planar lightwave circuit chip, and output fiber array. The chip’s waveguides split incoming signals into multiple outputs with minimal loss, aided by a high-precision design. This method enables compact, robust splitters crucial for modern telecom infrastructures.
Product Application Scenarios

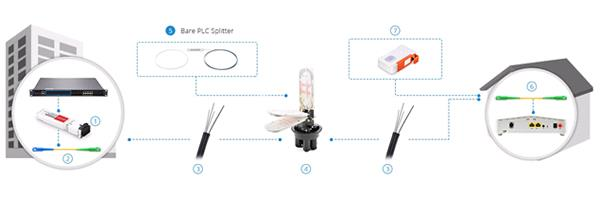

Fiber Optic PLC Splitters from our factory are pivotal in applications like FTTH, LANs, and CATV networks. These splitters enable efficient signal distribution from central offices to multiple endpoints, crucial for subscriber loop circuits and network backbones. In FTTH setups, a single input signal from a GPON network can be distributed to multiple homes, enhancing bandwidth delivery for demanding applications. This flexibility and scalability make PLC splitters indispensable in achieving cost-effective network expansions.
Product After-Sales Service
After purchasing from our factory, you're assured of comprehensive after-sales support including technical assistance, warranty services, and easy return policies for the Fiber Optic PLC Splitters.
Product Transportation
We ensure that our Fiber Optic PLC Splitters are securely packaged and transported to prevent damage, using reliable logistics partners for timely and safe delivery.
Product Advantages
- Uniform Distribution: Ensures consistent signal output.
- Compact and Reliable: Saves space and offers robust performance.
- Cost-Effective: Reduces costs in large-scale network deployments.
Product FAQ
- What is the typical insertion loss for a 1x8 splitter?
Our factory’s Fiber Optic PLC Splitters have a maximum insertion loss of 10.3 dB for 1x8 configurations, ensuring minimal signal degradation.
- Can these splitters be used outdoors?
Yes, they can be deployed in both indoor and outdoor environments, with a temperature range of -40 to 85 ℃ to ensure reliability.
- Do these splitters support multiple wavelengths?
Yes, they are designed for a wavelength range of 1260 to 1650 nm, suitable for various applications.
- How do PLC splitters differ from FBT splitters?
Our factory's PLC splitters offer higher precision and uniformity compared to FBT splitters, thanks to the advanced silica-based manufacturing process.
Product Hot Topics
- Integration of PLC Splitters in FTTH Networks
Integrating Fiber Optic PLC Splitters from our factory into FTTH networks ensures efficient bandwidth distribution. With the demand for high-speed internet, leveraging our splitters in GPON systems helps manage signal distribution effectively across wide areas. This integration supports seamless connectivity and enhances user experience by minimizing latency and maximizing data throughput.
- Enhancing Network Resilience
Our factory supports network resilience by offering dual input configurations such as 2xN splitters, which provide redundancy. This setup ensures continuous operation even if one input source fails, thereby maintaining reliability and service continuity in critical infrastructure.
Image Description
