Customized LSZH PFiber Optics Manufacturers –MGXTSWV For Duct Fcj Opto Tech 4-96 Core G652D Central Mining Cable Fiber Optic Cable – FCJ OPTO Detail:

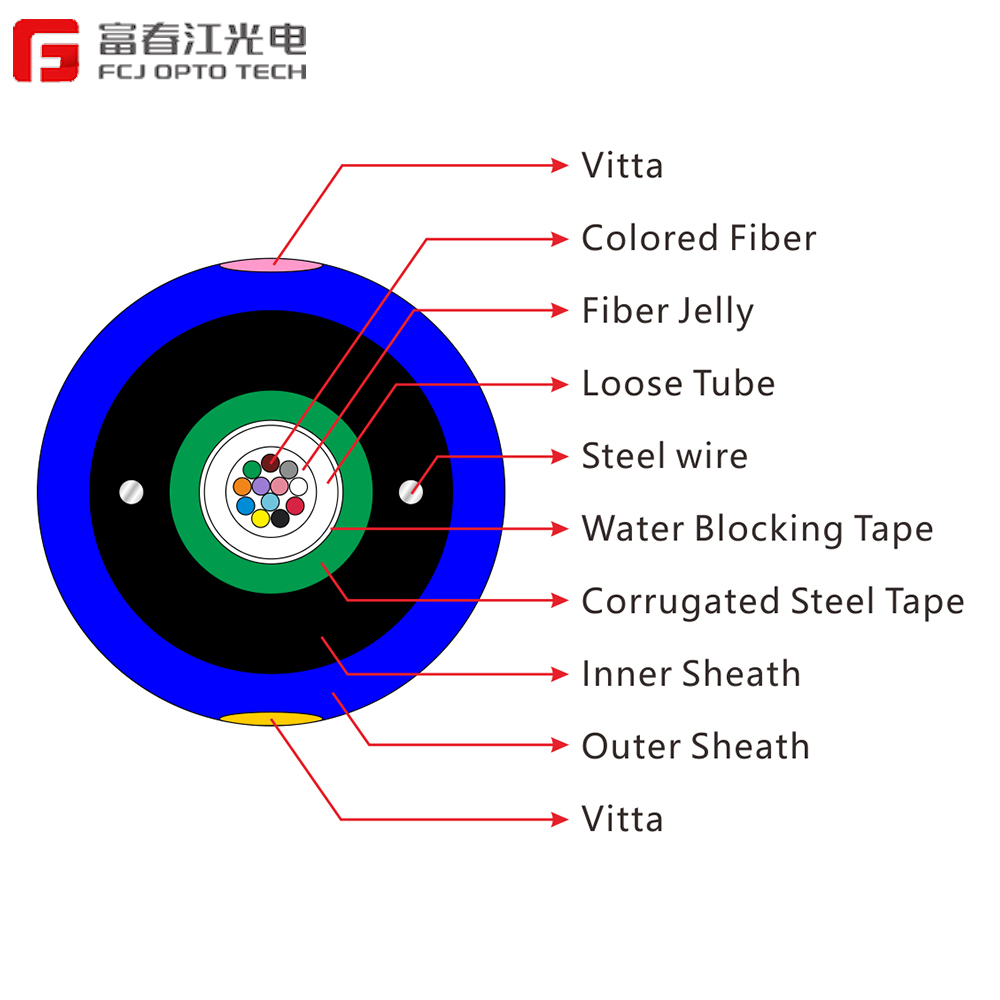

Characteristics

·Good mechanical and temperature performance
·High strength loose tube has good performance of water proof and high strength
·Special tube filling compound ensure a critical protection of fiber
·Crush resistance.
·Two parallel steel wires ensure tensile strength
·PSP enhancing moisture-proof and anti rodent
·Good water resistance material prevent longitudinal seepage
·Blue flame retardant PVC as second sheath to make the cable has good flame retardant performance.

Standards
·MGXTWV cable complies with Standard MT386-1995 test method and decision rule of the flame retardant of the cable used in coal mine.

Optical Characteristics

		G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20℃)	@850nm			≤3.0dB/km	≤3.0dB/km
	@1300nm			≤1.0dB/km	≤1.0dB/km
	@1310nm	≤0.36dB/km	≤0.36dB/km
	@1550nm	≤0.22dB/km	≤0.23dB/km
Bandwidth （Class A）	@850			≥500MHZ·km	≥500MHZ·km
Bandwidth （Class A）	@1300			≥1000MHZ·km	≥600MHZ·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc		≤1260nm	≤1480nm

Technical Parameters

Cable

Type

Fiber Count

Cable Diameter

Cable Weight
Kg/km

Tensile Strength

Long/Short Term

Crush Resistance

Long/Short Term N/100m

Bending Radius Static/Dynamic mm

MGXTSWV-2～12

2～12

130

500/1000

500/1500

15D/30D

Storage/Operating Temperature : -40℃ to + 70℃
